Past project
PV_LEDT1A

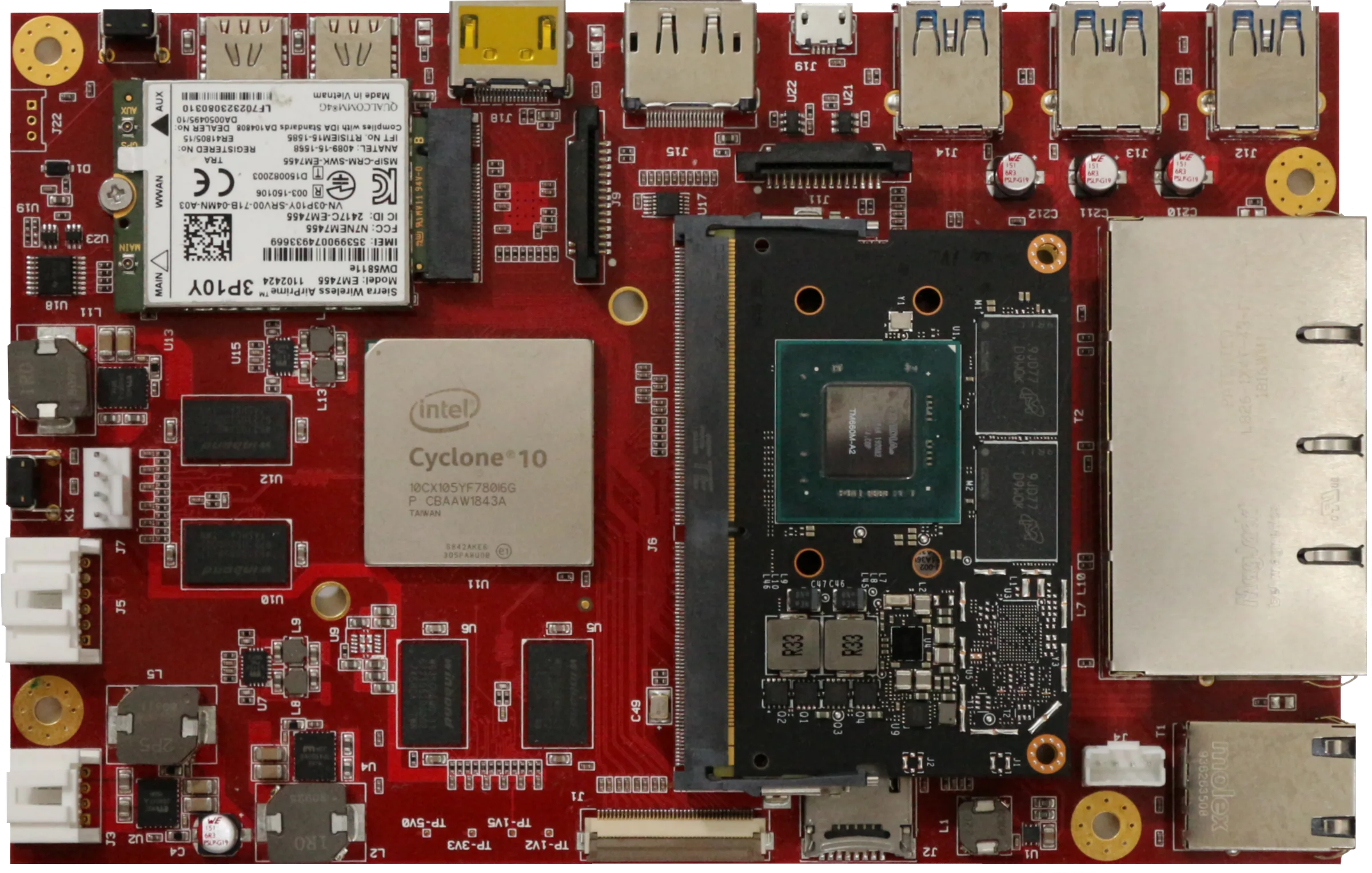

FPGA-accelerated board with Jetson Nano
NVIDIA Jetson Nano paired with an Intel Cyclone 10 GX FPGA: HDMI 2.0 in, DisplayPort out, five Gigabit Ethernet ports and LTE.
Specifications
- SoC
- NVIDIA Tegra X1 — Jetson Nano module
- FPGA
- Intel Cyclone 10 GX 10CX105YF780I6G
- FPGA memory
- DDR3, 2 banks × 32 bit
- Video
- HDMI 2.0 input (FPGA) · DisplayPort output (SoC)
- Ethernet
- 1 × 1 Gbps (SoC) · 4 × 1 Gbps (FPGA)
- Expansion
- FPGA high-speed transceivers for an external 16 × 1 Gbps Ethernet module
- USB
- 3 × USB 3.0 host · 1 × USB 2.0 device (SoC)
- Wireless
- M.2 Key-E Wi-Fi + BT · M.2 Key-B modem/LTE (SoC)
- Camera / display
- 2 × MIPI CSI camera · 1 × MIPI DSI LCD (SoC)
- Power
- 10–28 V DC
