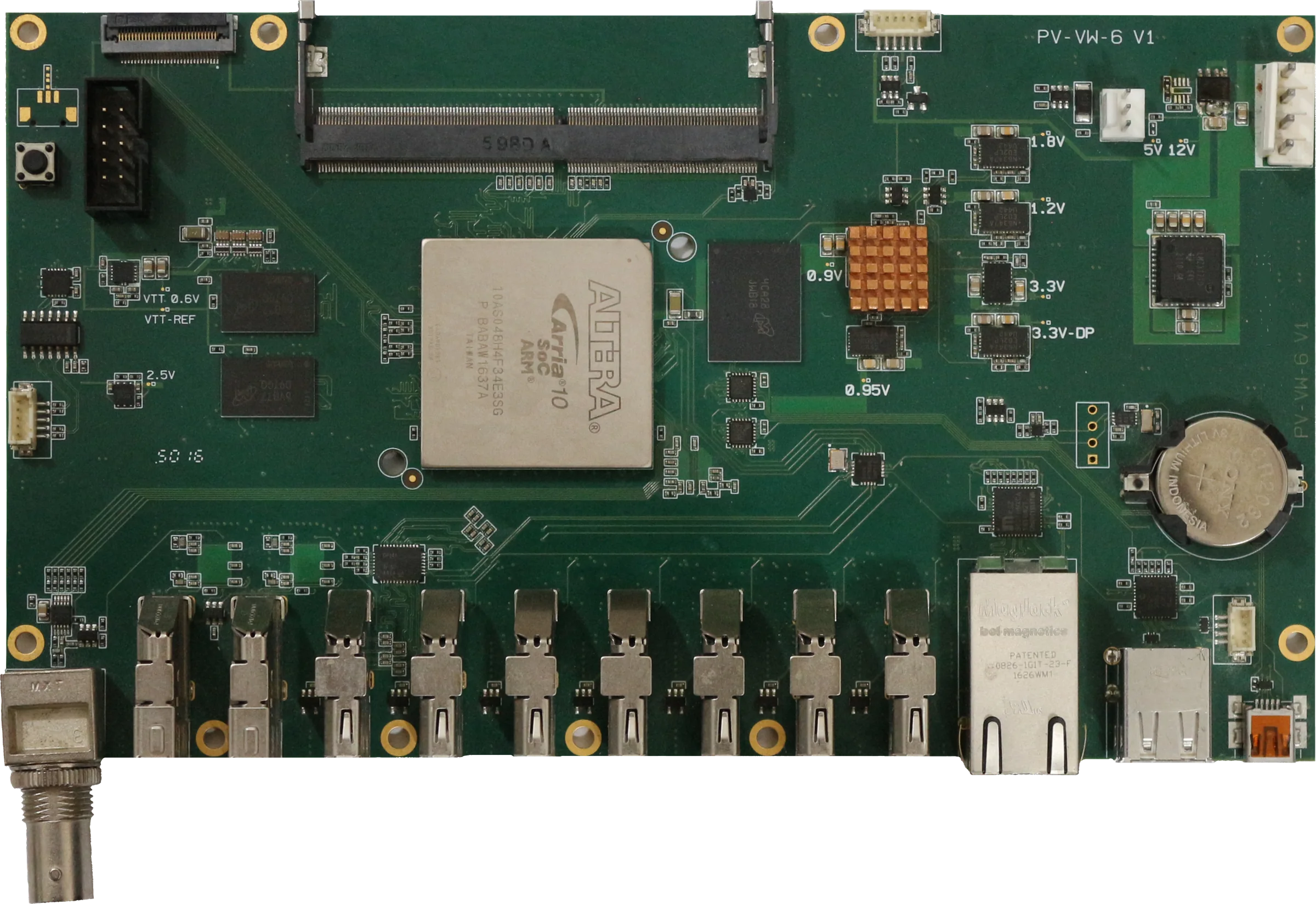

PV_VW6

Arria 10 SoC multi-display board

Intel Arria 10 SoC with embedded ARM: one DisplayPort 1.4 and two HDMI 2.0 inputs, six DisplayPort 1.4 outputs and all-digital genlock.

• Arria 10 SoC
• 6× DP 1.4
• HDMI 2.0
• Genlock

Specifications

FPGA-SoC

Intel Arria 10 SoC 10AS048H4F34E3SG

CPU

Embedded ARM hard processor

Memory

DDR4 SO-DIMM

Inputs

1 × DisplayPort 1.4 · 2 × HDMI 2.0

Outputs

6 × DisplayPort 1.4

Sync

All-digital genlock

Display

MIPI DSI LCD port

I/O

Gigabit Ethernet · RS-485 · USB 2.0 device · 3-port USB 2.0 host
